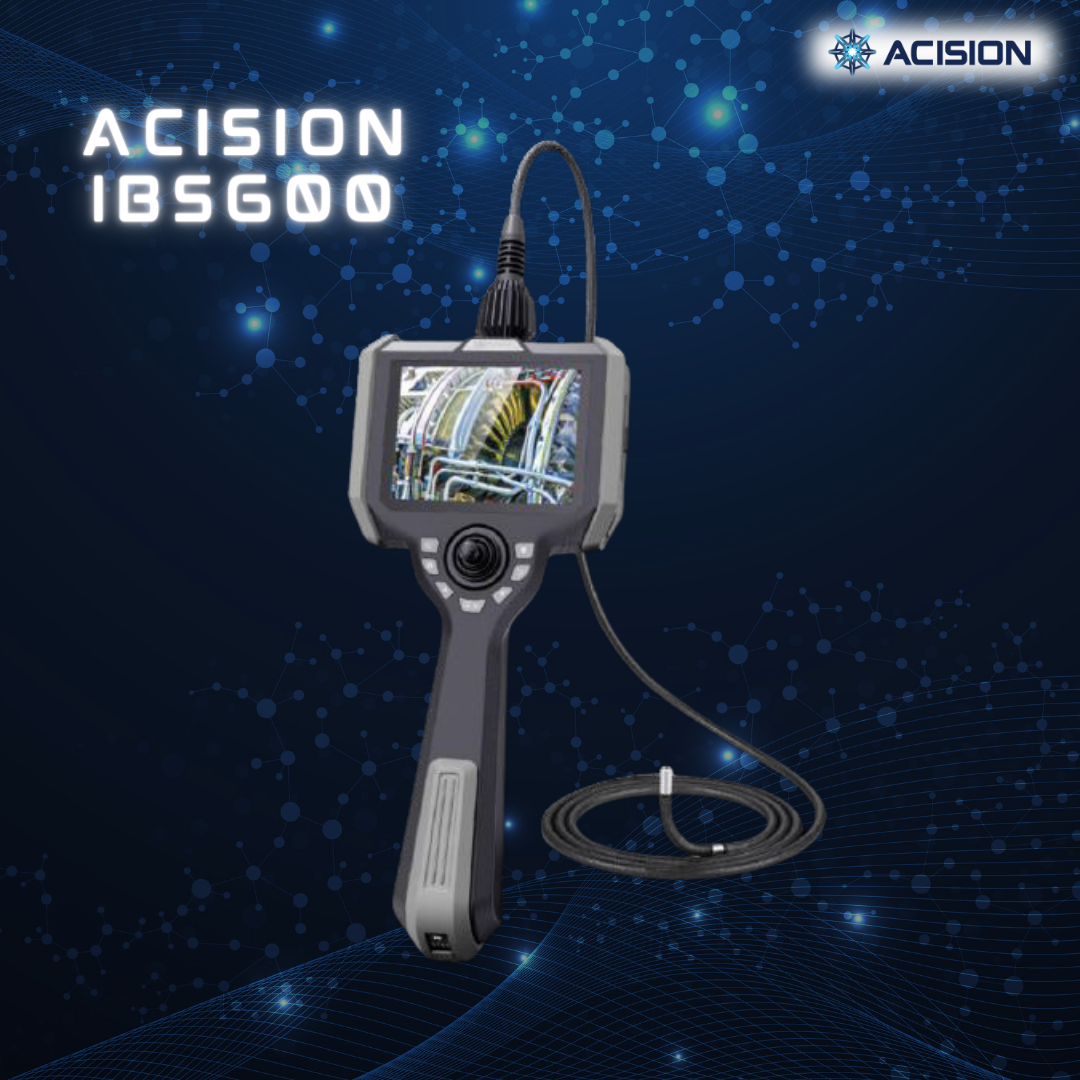

Acision IBS-600 Industrial Borescope

ACISION IBS-600series borescope has a high level of clarity and precision in the images, and the probe can be easily replaced if it is of a different specification. The probe are waterproof, oil resistant and wear-resistant.

Their software functions are powerful and can be applied to a variety of projects. They are mainly used in automobile manufacturing, aerospace, precision casting, railway ships, pressure vessels, electric power, petrochemical and pipelines welding, logistics, and other internal visual inspection scenes, is a video endoscope that can meet your various environmental needs.

Specifications

1. Host

• Dimension: 350*155*59mm
• Display: 5-inch industrial touch LCD screen
• Output: port HDMI video output，Micro USB、TF card slot
• Storage: 32G
• Power: Special rechargeable lithium battery pack, online charging, battery life
• ≧4 hours
• IP grade: IP65
• Working temperature: -10℃～50℃
• Storage temperature: −20℃～60℃
• Relative humidity: Max 95%，No condensation

2. System

• Operation System: Multifunctional operating system
• Operation method: Button navigation, dual camera and video buttons
• Support Function: With freeze, zoom, photo, flip, video playback, analog ruler functions
• File Format Image: JPEG = JPG / Video = AVI
• Supported Language: Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese

3. Packing Case

• Weight: 3.9kg
• Measurement: L*W*H = 47.9*38.7*15.5cm

4. Camera and Probe

Lens

• Direction Direct: view/Side view/Double view
• View angle(θ): 120°
• DOF: 12mm~200mm
• Pixel: 1MP
• Illuminating system: Rear high-power LED fiber optic transmission

Probe

• Length(L): 14±0.5mm
• Diameter(D): 6mm
• Articulating: 360° full direction articulation
• Bending Angle(ɑ): 170°±10° , 160°±10° , 150°±10° , 130°±10°, 120°±10°
• IP grade: IP67
• Working temperature: -20°C~70°C

Insert tube

• Length: 1m , 2m, 3m, 4m, 5m, 6m
• Material Flexible: (tungsten braided tube)
