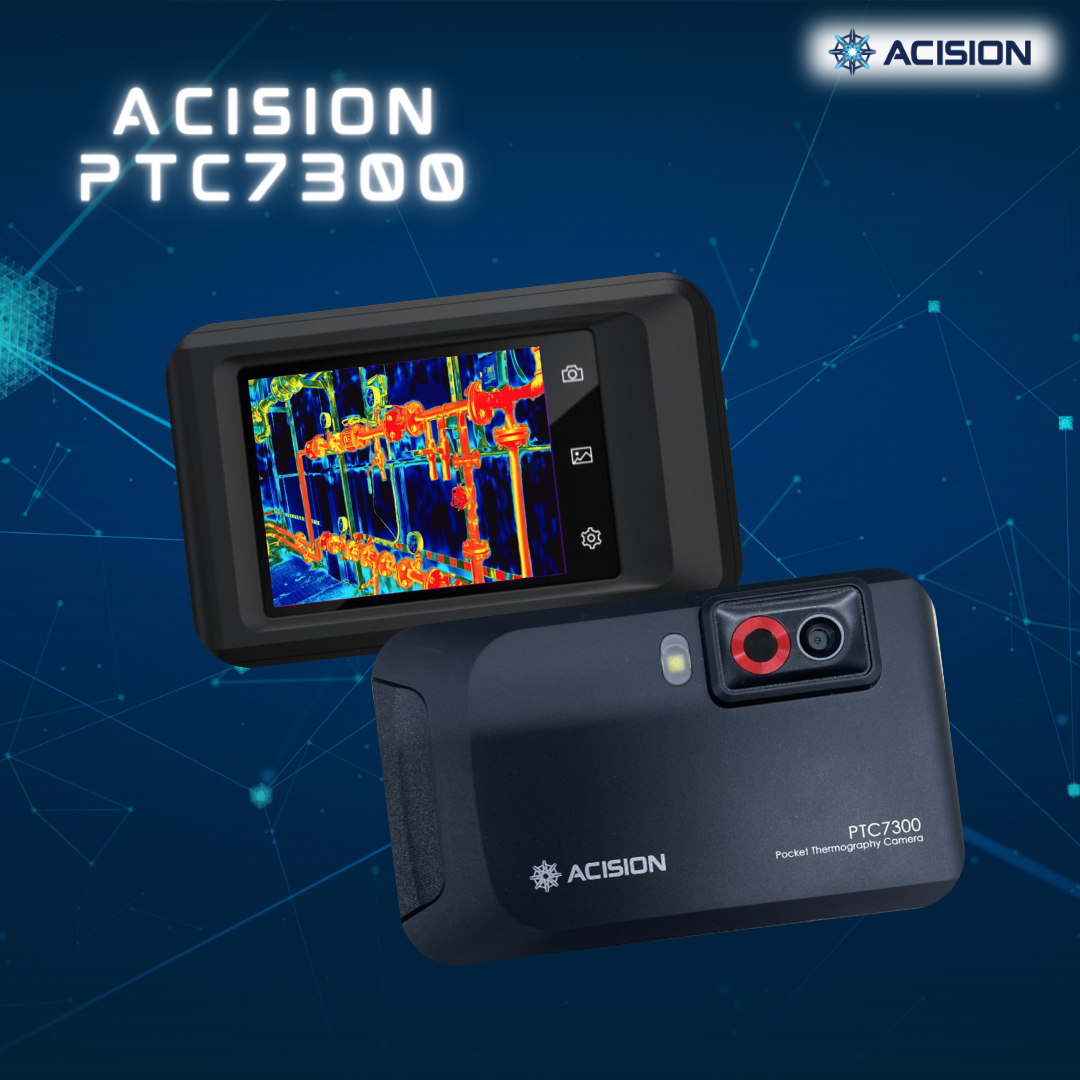

Acision PTC-7300 Portable Thermal Camera

Acision PTC-7300 Portable Thermal Camera

Upgraded with NEW FEATURE! - SUPER IR mode which Enhance Image Quality

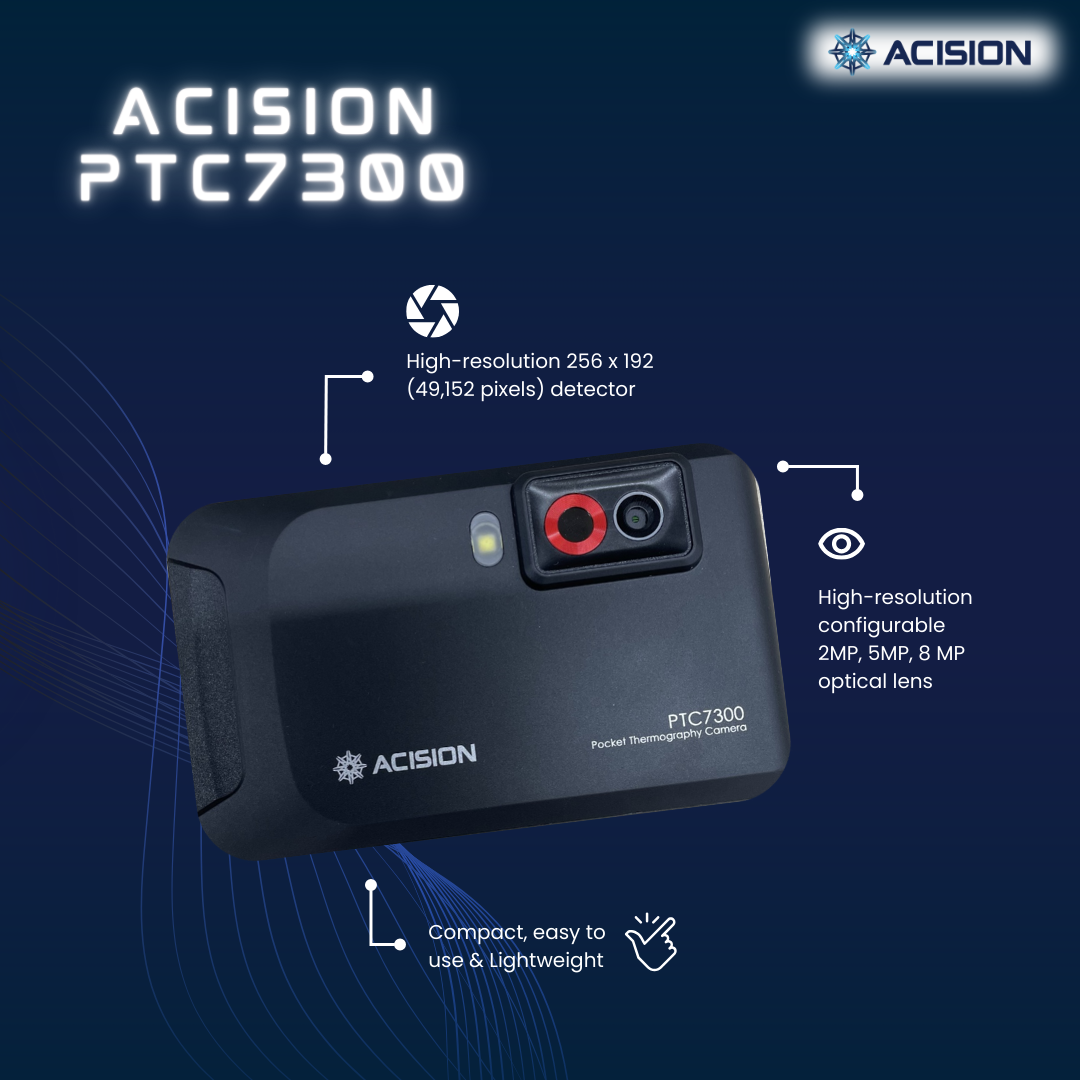

The Acision PTC-7300 features a 49,152-pixel detector along with a customizable 2MP to 8MP optical lens. With 3-level/span modes (manual, auto, 1-tap), it elevates image contrast for swift fault identification and precise temperature measurements ranging from -20 °C to 400 °C. Its versatility makes it an outstanding choice for applications such as building inspections, HVAC, electrical, and mechanical maintenance.

Key features

  • 256x192 thermal resolution (NETD < 40 mK) - ultra high resolution
  • Multiple image modes - Thermal, Fusion, PIP, Optical
  • Measurement presets - center spot, hot spot, cold spot, off
  • Portable design fits easily into pocket and tool bag
  • IP54 rating and 2-meter drop test protection suitable for industrial use

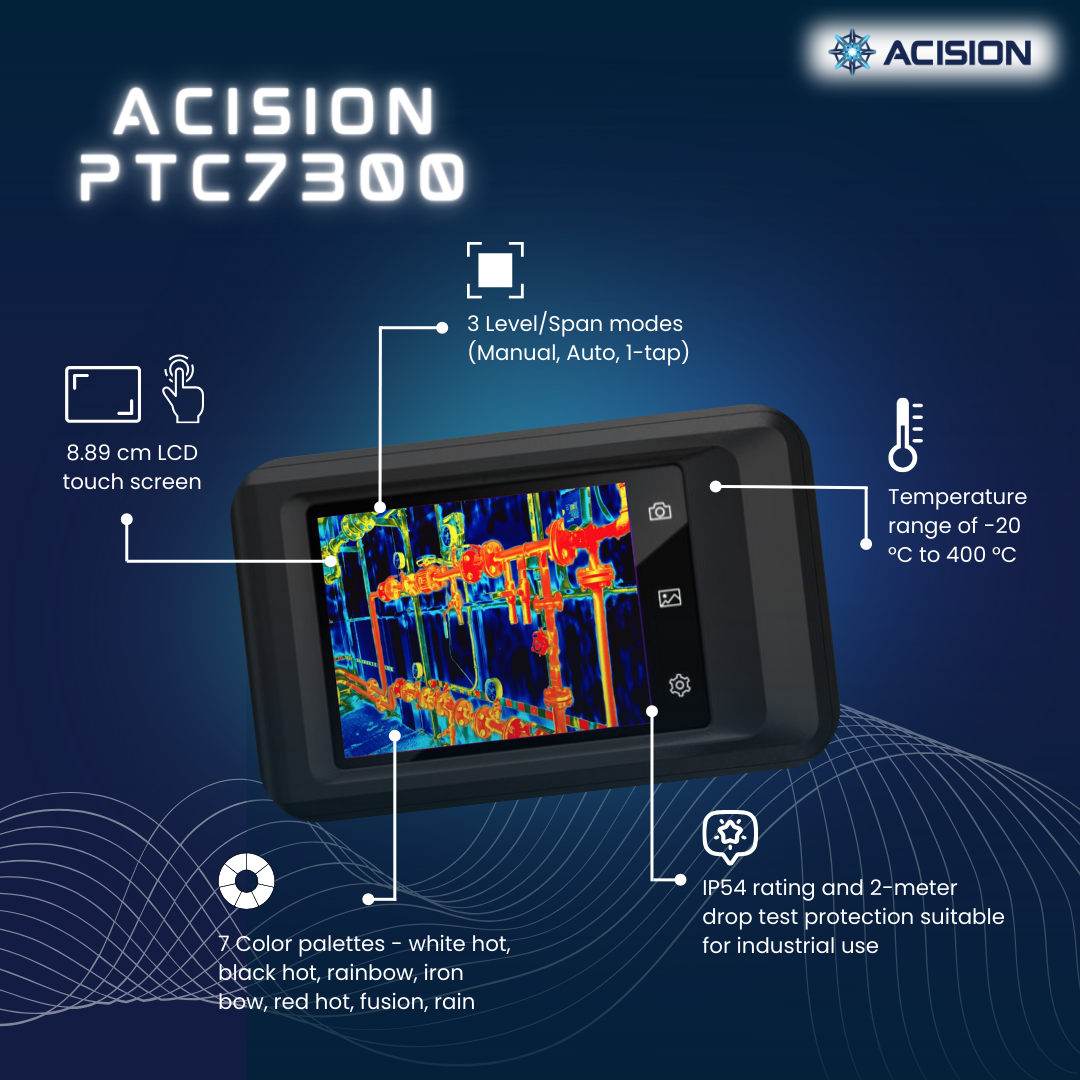

  • 3.5in color LCD Touch Screen display; 640x480 resolution; 1x to 4x digital zoom
  • Level and span modes (Auto, Manual, 1-tap touchscreen)
  • High-temperature alarm - audio/visual alerts to high temperatures
  • LED work light - work safely in dark environments
  • 7 Color palettes - white hot, black hot, rainbow, iron bow, red hot, fusion, rain
  • 25 Hz fast image frequency - smooth video, measurements if panning scenes, moving targets
  • 4hrs continuous running battery life
  • Field of View - 50° x 37.2°
  • Storage 16GB internal; 60K images, 10hrs video, radiometric JPEG with measurement data
